Automotive Acoustic Measuring Instrument

Sennuopu M2: Professional 24-bit/192kHz Acoustic Analyzer with ECM8000 Mic, Compatible with Major Audio Software, for Precision Car Audio Tuning & Measurement. Portable, Durable & User-Friendly.

Product Details

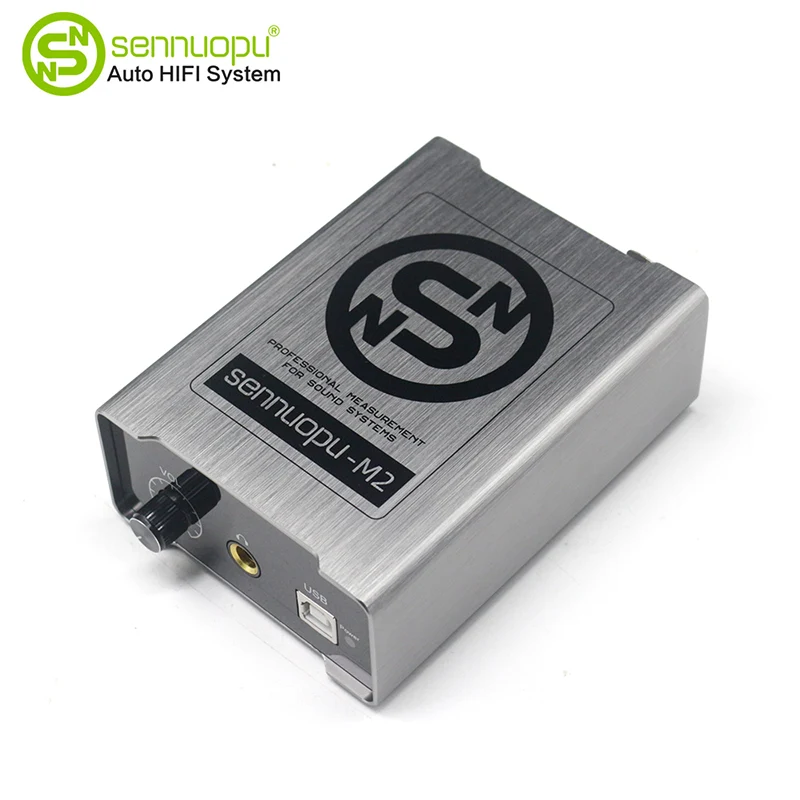

Sennuopu M2 PRODUCT OVERVIEW

1.This acoustic measuring instrument is compatible with most audio measurement software, such as TrueRTA, SMAART V7/8, SYSTUNE, SAT live, ARTA software, REW, audio tools. The windows/MAC OS X system is driveless, can be used when connected to a data cable, is easy to operate, and is equipped with a portable storage bag, which is convenient to carry. It is one of the necessary tools for the tuner.

2.Traditional Tuners are more based on experience and intuition, relying on personal feelings and ears to adjust the parameters of the sound. This method is very important for the Tuner’s experience, therefore, Sennuopu has developed an acoustic measuring instrument-M2 and a special microphone for testing ECM8000 for car audio systems, allowing Tuners to optimize the quality and accuracy of sound through scientific analysis and technical means in scientific tuning, to achieve the best sound quality.

Sennuopu M2 PRODUCT OVERVIEW

1.In order to pursue the purity of sound and capture all the details of recorded sound, the M2 Automotive Acoustic Measuring Instrument adopts a high-resolution circuit design with a sampling rate of 24-bit/192KHz, make testing more precise and standardized.

2. Portable design, the body is made of aviation aluminum, and the surface is made of positive oxidation process. The smallest volume, lightest weight and most beautiful appearance are achieved. Let the tuning engineer show the most professional style.

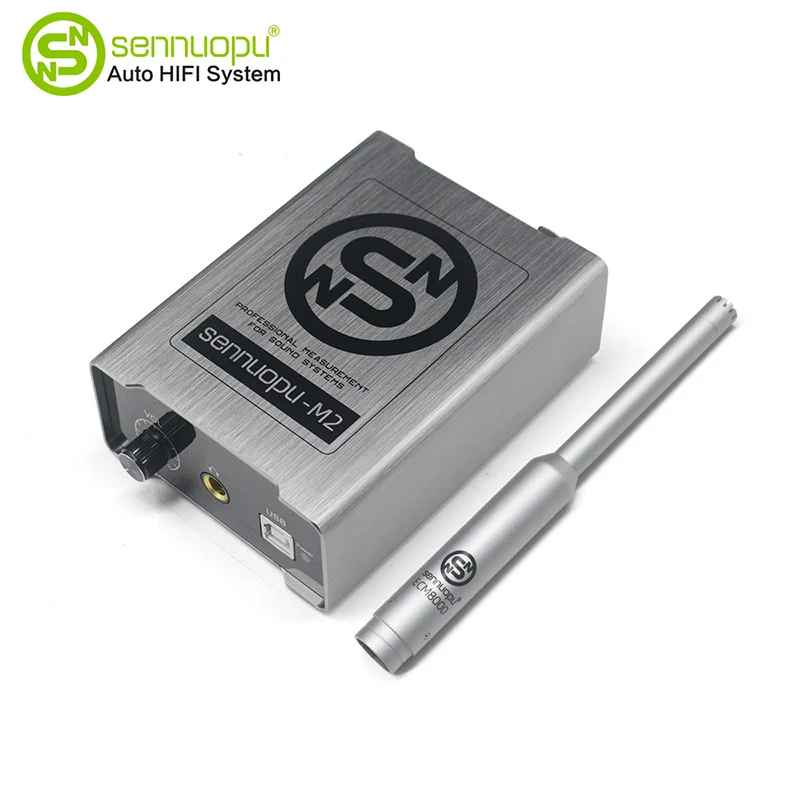

3.ECM8000 is a special condenser microphone, specially designed to be used with acoustic tester (Sennuopu M2) to provide accurate measurement data. The ECM8000 uses phantom power supply with a voltage of +48V.

4.ECM8000 In order to achieve the most accurate and authentic recording music details, the body is made of copper, a metal material with the highest shielding, the strongest anti-interference ability, and the highest density. The surface is painted to achieve the best friction and corrosion resistance.

5. Provide test software ,SysTune is a software for real-time measurement and analysis of sound, which can be measured in real time and displayed as impulse response, transfer function and other data.

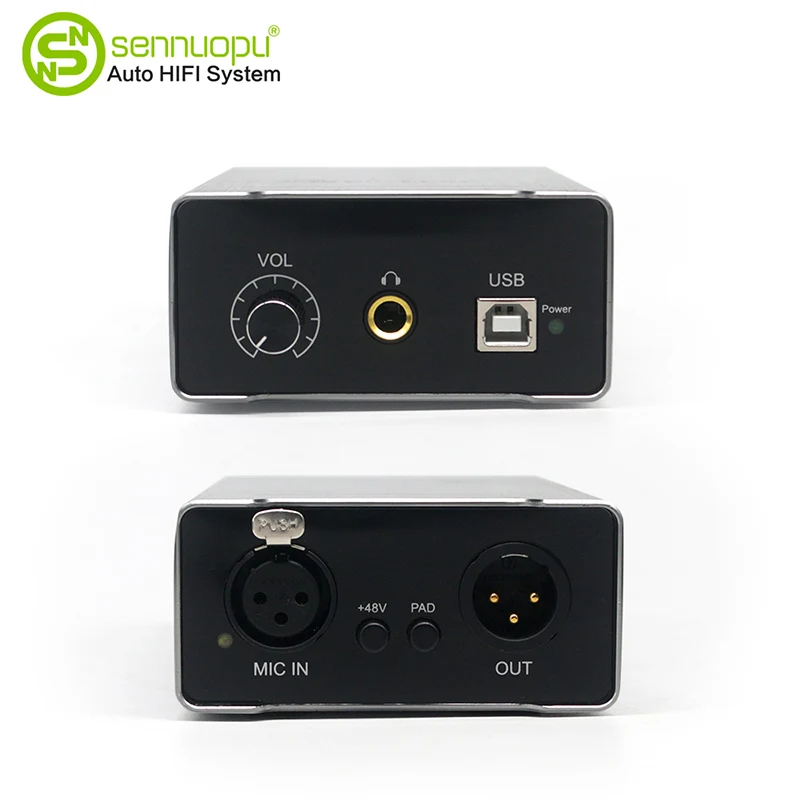

Sennuopu M2 Connection introduction

1.48V phantom power indicator

2.48V phantom power switch

3. Measure the input channel

4.Input channel attenuation 10dB switch

5. Output channel

6. Output volume control knob

7.Headphone monitor output (stereo output)

8. USB interface

9. Power indicator

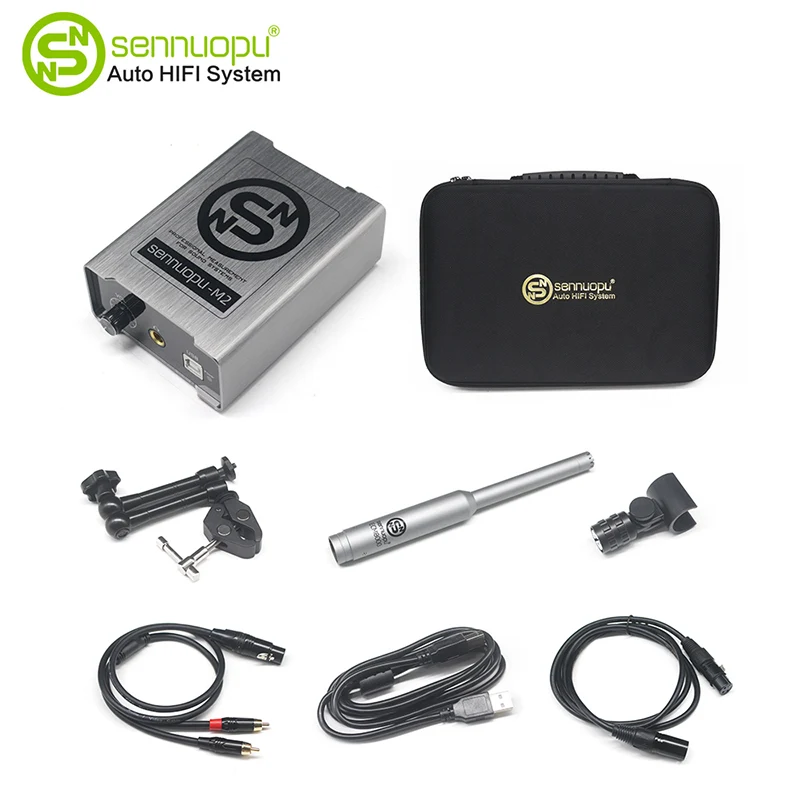

Sennuopu M2 What's in the package

● Acoustic measuring instrument M2

●Measure the microphone ECM8000

● Input audio cable

● Output audio cable

● Fixing the bracket

●Handy handbag

●Computer measurement software and tutorials are included
