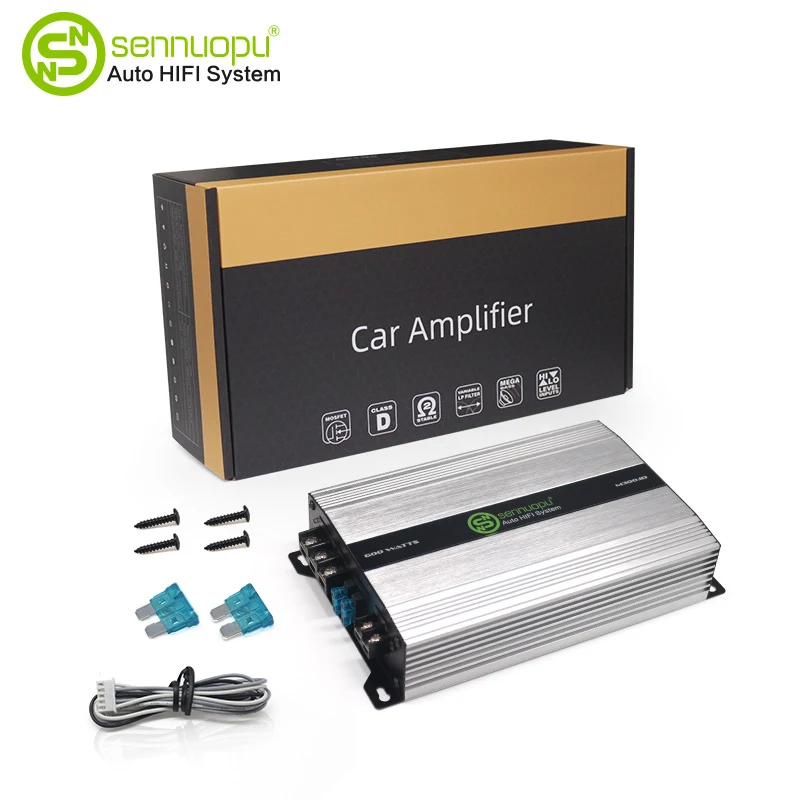

Sennuopu M300.1D-A compact yet powerful mono Class D amplifier featuring smart protection, adjustable bass boost (45Hz, 6-12dB), and flexible input control (200mV-15V). Ideal for tight installations while delivering uncompromising subwoofer performance.
Designed for easy placement, the High Power Mono Car Amplifier Class D Subwoofer Bass Boost delivers powerful performance in a space-saving design, with a stylish black casing and silver printed accents.
The STAGE A3001 amplifier includes a cutout circuit for safeguarding against shorts, overheating, and voltage spikes.

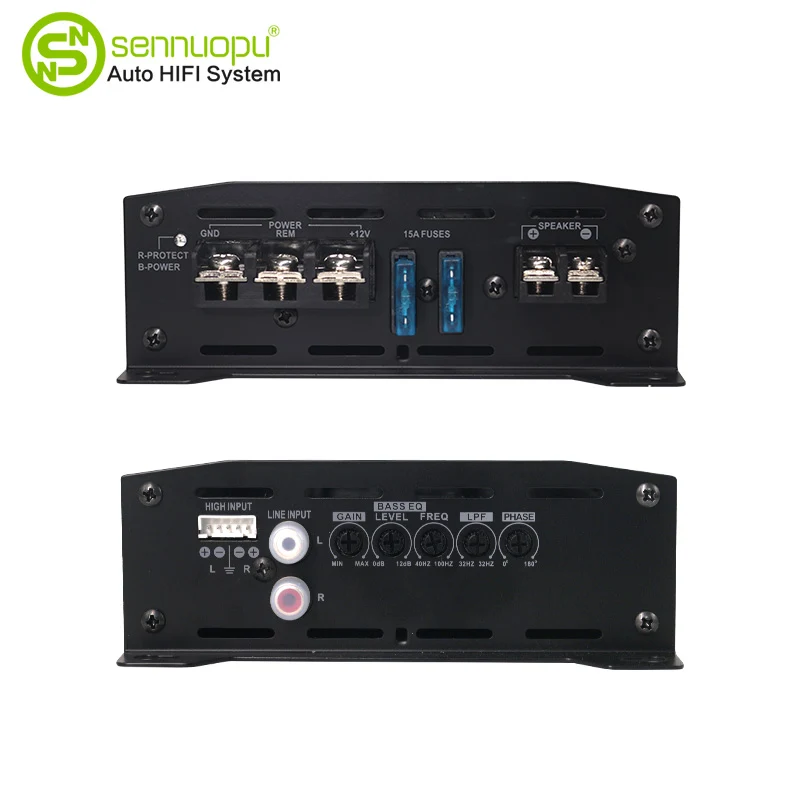

Customize low-end response with selectable 45Hz bass boost at 6dB or 12dB, tailored for subwoofers and speakers based on placement and enclosure design.
Optimizes input levels: 200mVrms–5.0Vrms for Low-level signals and 0.5Vrms–15Vrms for High-level inputs.
| Model | M300.1D | M70.4D |
| Operating voltage | 9-16V | 9-16V |
| RMS power@4 ohms | N/A | 70W |
| RMS power@ 2 ohms | 300W | 100W |
| RMS bridged power@4ohms | N/A | 200W |
| Total peak power | 600W | 560W |
| Frequency response | 10Hz-320kHz@-3dB | 20Hz-20kHz@-1dB |
|
THD+N at rated power (20Hz-20kHZ) |
<1% | <1% |
|
Line-in signal-to-noise ratio (reference to 1 watt) |
>75dB | >75dB |
| Maximum high input signal level | 12V | 12V |
| High input maximum sensitivity | 0.5V | 0.5V |
| Maximum line input signal level | 5V | 5V |
| Line input maximum sensitivity | 0.2V | 0.2V |
| Quiescent current draw | <1.5A | <1.2A |
| Fuse size | 2x15A | 2x15A |
| Dimensions (HxWxL) | 50x145x241.6mm | 50x145x193.6mm |
| Weight | 1.609kg | 1.381kg |
